There are several new and updated assistants in NobelGuide which facilitate the planning stage of an implant-supported treatment solutlon.
Mark important anatomical structures
Special tools are available for highilghting nerves, dental roots and other anatomical structures/restrictions. These anatomical annotations are visible in the 3D scene and the right viewer (Flgure 1 ).
Rotate the reslice planes in several directions
Diagnostics and planned placement of angulated implant is simplified; mesio-distal and buccal-lingual rotations are possible (Flgure 2).
Move a reslice to an implant axis
Bone quailty and quantity (as well as proximity to neighboring roots) around an implant can be examined by attaching a reslice parallel to its axis. Reslice orientation (e g. rotation) is changed with sliders (Flgure 3).
Position an implant parallel to another implant
New implants can be placed parallel to an already positioned implant simply by clicking on a specific position in a reslice view. Only small modifications are needed to define the final location (Flgure 4).
Warning tools to show techni่cal restrictions
Guided sleeves become red when their positions inhibit production of the surgical template (Flgure 5).
Visualization of safety zone
A safety zone for each implant is visible. Ideally the safety zone is completely surrounded by bone (Flgure 6).

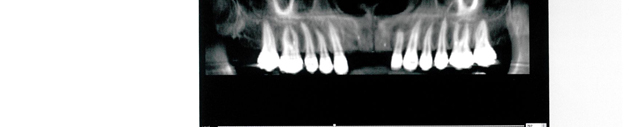

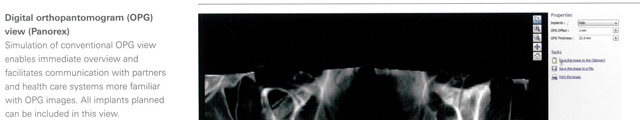

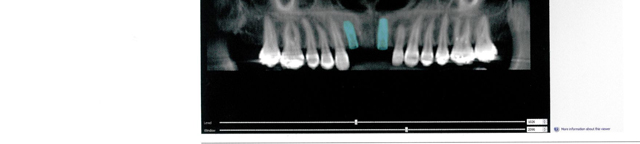

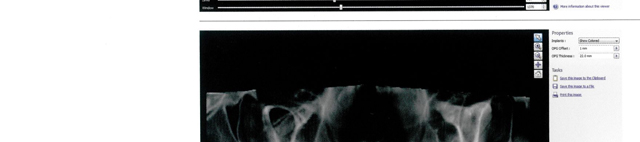

NobeIGuide planning software with new OPG viewer function.
