NobelGuide CT-based 3D diagnostics provide full control over the surgical and restorative parameters of the indivldual case

Diagnostics and scanning

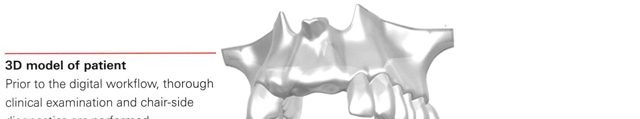

Clinical diagnostics
prior to the digital workflow, thorough clinical examinti่on and chair-side diagnostics are performed. Detailed diagnostics give a clear understanding of the medical/dental status and prosthetic characteristics of the case, which minimizes uncertainty from the procedure. Dental impressions and a bite registration are taken as well.

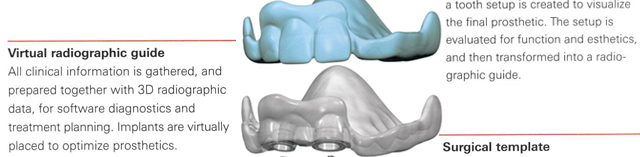

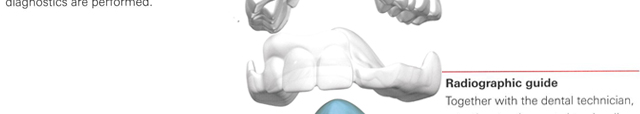

Radiographic guide fabrication
Based on an impression and bite registration, a tooth setup is created that visuailzes the final prosthetic. The setup is evaluated for function and esthetics, and then transformed into a radiographic guide.
NobelGuide follows a unique scanning protocol that uses two independent scans to acquire patient anatomy and visuailze for radiographic guide. The protocol is called "double scan” technique.

Computed tomography (CT) scanning
Digitization is performed through 3D radiographic imaging: medical computed tomography (CT) scanners or compatible cone beam CT scanners. Clinical diagnostics, CT scanning of the radiographic guide and patient form the basis for planning, evaluating and defining the optimal positions of the dental implants.

Planning, placement and restoration

Treatment planning
Based on the information form the doublesacn technique, implants can be virtually planned according to cilnical, anatomical and prosthetic aspects.

Tools are available for sharing planning information, facilitating discussions and assisting in decision-making between the cross-functional treatment team, referral network and the patient.

Guided implantology
Based on the planning, a surgical template is automatically designed and available for online ordering, which contains all planning information and fully guides the surgery. NobelGuide uses guided sleeves in the surgical template and a guided implant mount- implant-system compatible to ensure precision placement of implants.

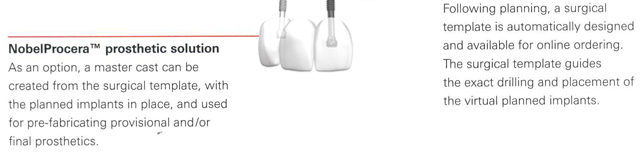

Pre-fabricated prosthetics
The same surgical template can be used for prefabrication of prosthetics in the dental laboratory. ln addition to the surgical template, all necessary surgical and lab components used in a specific treatment can be ordered online.
